You are here: HOME > SWAGING INSERTS

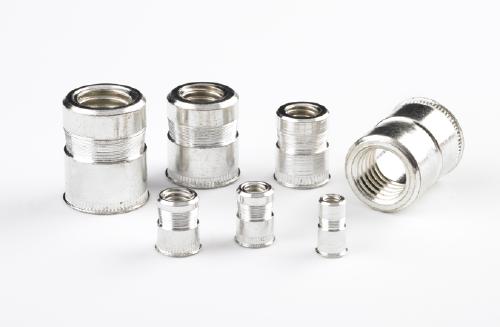

Swaging Inserts


The MEMFAST "MEMSERT" (Swaging Insert) is designed to provide load bearing threads in thick materials and blind holes. The insert features a mechanical locking mechanism for applications requiring a higher push through and pull out resistance. The Swaging Insert only needs access from one side of the workpiece and can be installed in pre-coated or post-painted panels without damaging the surface. Its low profile head allows a near flush fit to the panel. They are ideal in light duty sheet metal applications into thicker materials where other inserts may not be suitable.






Sort By
Showing all 5 Products
M4 Steel, Swaging Inserts   (NTS-470-10)
M4 Steel, Swaging Inserts Part No.NTS-470-10

Qty
M4 x 0.7 NTS-470-10
Pack of 10
£9.00



M5 Steel, Swaging Inserts   (NTS-580-10)
M5 Steel, Swaging Inserts Part No.NTS-580-10

Qty
M5 x 0.8 NTS-580-10
Pack of 10
£11.00



M6 Steel, Swaging Inserts   (NTS-610-10)
M6 Steel, Swaging Inserts Part No.NTS-610-10

Qty
M6 x 1.0 NTS-610-10
Pack of 10
£14.00



M8 Steel, Swaging Inserts   (NTS-8125-10)
M8 Steel, Swaging Inserts Part No.NTS-8125-10

Qty
M8 x 1.25 NTS-8125-10
Pack of 10
£20.00



M10 Steel, Swaging Inserts   (NTS-1015-10)
M10 Steel, Swaging Inserts Part No.NTS-1015-10

Qty
M10 x 1.5 NTS-1015-10
Pack of 10
£30.00



Sort By
Showing all 5 Products
